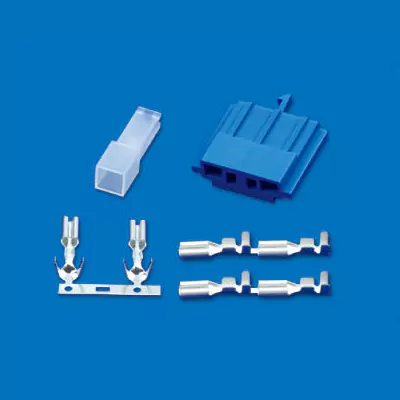

Supply 2.8 in-line terminal 110 series & hard sleeve.
| Item | Terminal & Hard Sleeve |
| Series | Wire-to-Wire Connector |
| Model | 110 |
| Rated voltage | 300 V AC/DC |
| Rated current | 10.0 A |
| Applicable wire | AWG #24 ~ #12 |
| Contact resistance | ≤ 20 mΩ |
| Insulation resistance | ≥ 1000 MΩ |
| Withstand voltage | 1000 V AC/min |
| Temperature range | -25 ℃ ~ 85 ℃ |
| Housing | Nylon (PA66) UL94V-2(0) |
| Terminal | Tin plated phosphor bronze |
| Wafer | Nylon (PA66) UL94V-2(0) |
| Retainer | Nylon (PA66) UL94V-2(0) |
Hegxing focuses on producing various of Electronic Connector, Wiring Harness & Electronic Switch since 2011, which are widely apply to household appliances, equipments, automobiles, etc. The products are approved by UL, RoHS and ISO9001 certificate.
Hegxing always devote to provide competitive price, guaranteed quality & thoughtful service to every customer. Welcome to inquire!
