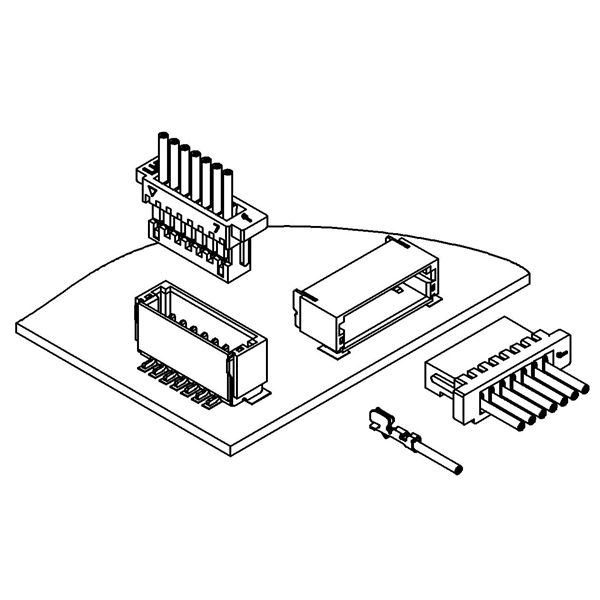

SMT Connector (SH) 1.0mm Pitch
- Economical replacement for JST SH Connector, similar specification & quality but low price.
- Compact, low profile design.
- Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.
- The receptacle has protrusions on both ends for an operator to disengage the receptacle from the header without holding the wires.

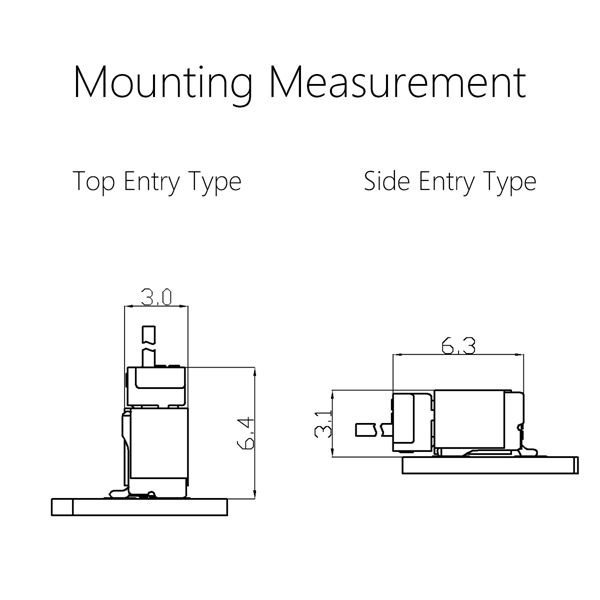

Specifications
| Item | SMT Connector |
| Series | Wire-to-Board Connector |
| Model | SH |
| Poles | 2 ~ 20 P |
| Rated voltage | 50 V AC/DC |
| Rated current | 1.0 A |
| Applicable wire | AWG #32 ~ #28 |
| Applicable PC board thickness | 1.2 ~ 1.6 mm |
| Contact resistance | ≤ 20 mΩ |
| Insulation resistance | ≥ 1000 MΩ |
| Withstand voltage | 1000 V AC/min |
| Temperature range | -25 ℃ ~ 85 ℃ |
Materials
| Housing | Nylon (PA66) UL94V-2(0) |
| Terminal | Tin plated phosphor bronze |
| Wafer | Nylon (PA66) UL94V-2(0) |
| Retainer | Nylon (PA66) UL94V-2(0) |
