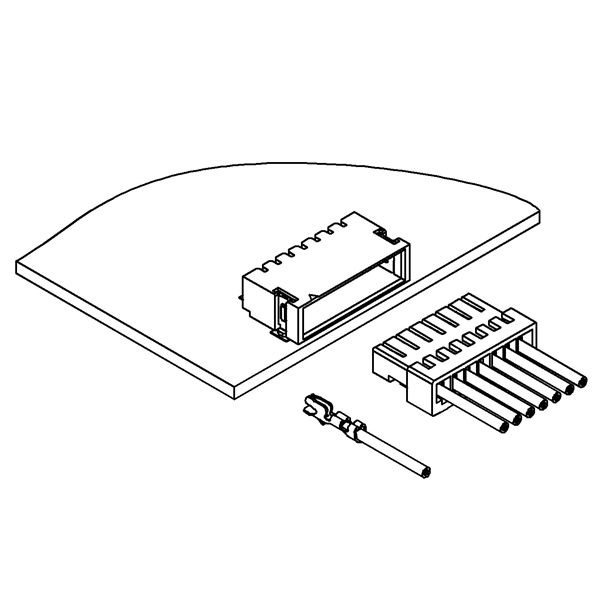

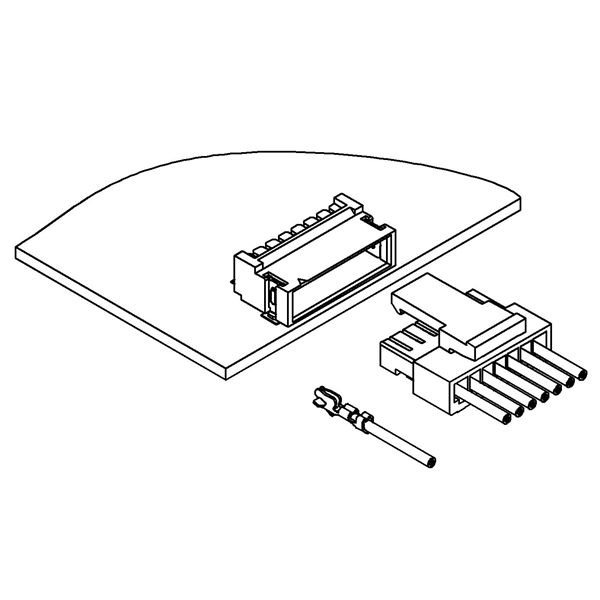

SMT Connector (NH1.0) 1.0mm Pitch
- Economical replacement for JST NH1.0 Connector, similar specification & quality but low price.
- The protected, folded beam contact provides high contact pressure with an over-stress stop feature.
- Double-sided contact.
- Molded-in header with wide, sturdy posts.

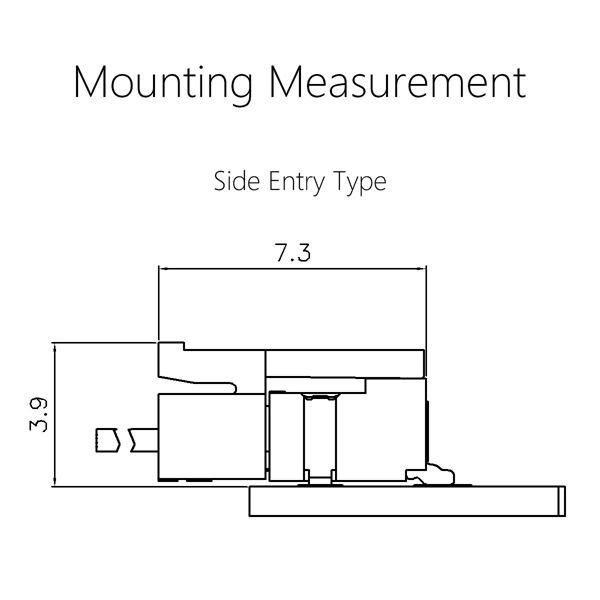

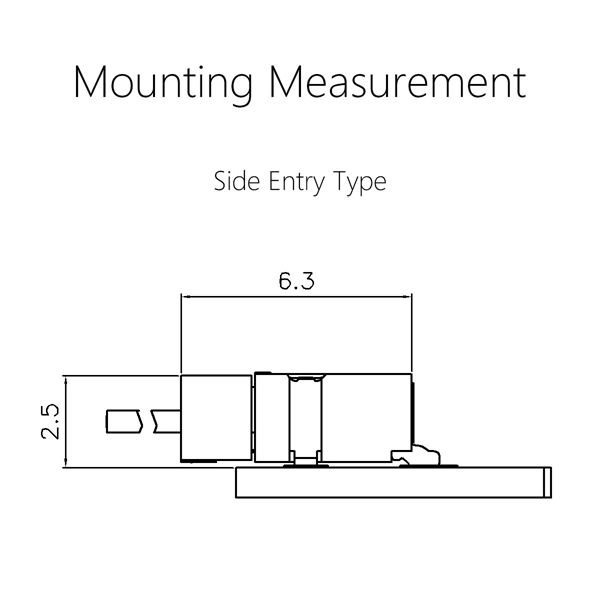

- The header is available in three configurations, top, side and bottom entry.
Specifications
| Item | SMT Connector |
| Series | Wire-to-Board Connector |
| Model | NH1.0 |
| Poles | 2 ~ 30 P |
| Rated voltage | 50 V AC/DC |
| Rated current | 1.0 A |
| Applicable PC board thickness | 1.2 ~ 1.6 mm |
| Contact resistance | ≤ 20 mΩ |
| Insulation resistance | ≥ 1000 MΩ |
| Withstand voltage | 1000 V AC/min |
| Temperature range | -25 ℃ ~ 85 ℃ |
Materials
| Housing | Nylon (PA66) UL94V-2(0) |
| Terminal | Tin plated phosphor bronze |
| Wafer | Nylon (PA66) UL94V-2(0) |
| Retainer | Nylon (PA66) UL94V-2(0) |
