SMT Connector (FI-S) 1.25mm Pitch

  • Economical replacement for JAE FI-S Connector, similar specification & quality but low price.

Specifications

ItemSMT Connector
SeriesWire-to-Board Connector
ModelFI-S
Poles2 ~ 30 P
Rated voltage200 V AC/DC
Rated current1.0 A
Applicable wireAWG #32 ~ #28
Applicable PC board thickness1.2 ~ 1.6 mm
Contact resistance≤ 20 mΩ
Insulation resistance≥ 1000 MΩ
Withstand voltage1000 V AC/min
Temperature range-25 ℃ ~ 85 ℃

Materials

Housing Nylon (PA66) UL94V-2(0)
Terminal Tin plated phosphor bronze
Wafer Nylon (PA66) UL94V-2(0)
Retainer Nylon (PA66) UL94V-2(0)

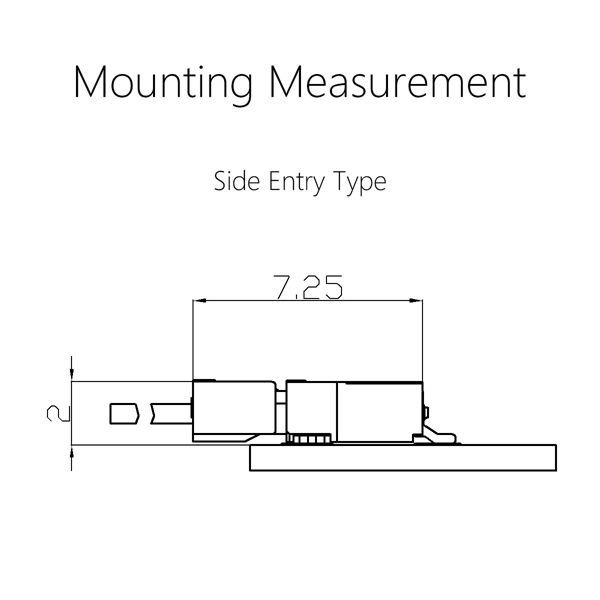

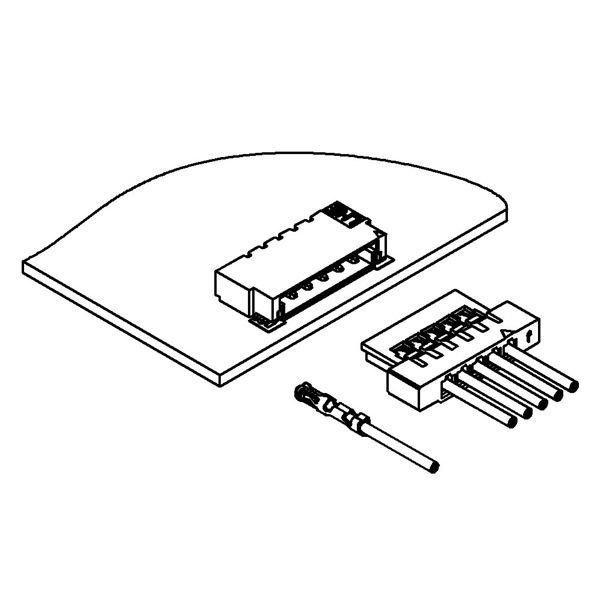

Drawings

FI-S
