Hegxing supplies various of Rotary Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.
Our Rotary Switches have advantages of economy, durability, easy mounting.
Description
Specifications
| Rating: | 400A 60VDC |
| Contact resistance: | ≤ 50 mΩ |
| Insulation resistance: | ≥ 100 MΩ |
| Dielectric intensity: | ≥ 1,500 VAC / 5 S |
| Life: | 10,000 cycles |
| Angle of gear: | 30º / 90º |
| Circuit diagram: |  |
| Position of initial gear (α): |
|
| Dimensions of pole: |  |
| Terminal diagrams: |   |
| Bolt diagrams: |    |

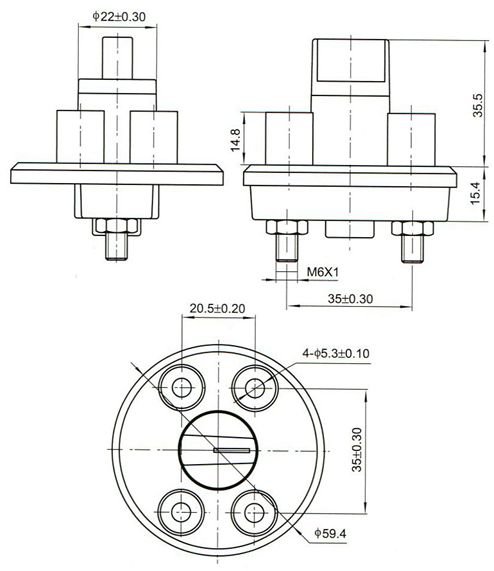

Drawings
Diagram of Switching On & Off
| Input | Output | Gear position | ||
 |
 |
 |
||
| A | 1 | ON | ||
| 2 | ON | |||
| B | 3 | |||
| 4 | ||||
| Input | Output | Gear position | ||
|
|
|
||
| A | 1 | ON | ON | |
| 2 | ON | |||
| B | 3 | |||
| 4 | ON | |||
| Input | Output | Gear position | |||
|
|
|
 |
||
| A | 1 | ON | |||
| 2 | ON | ON | |||
| B | 3 | ON | ON | ON | |
| 4 | ON | ON | ON | ||
| Input | Output | Gear position | |||
 |
 |
 |
 |
||
| A | 1 | ON | |||
| 2 | ON | ||||
| B | 3 | ON | |||
| Input | Output | Gear position | |||
 |
 |
 |
 |
||
| A | 1 | ON | ON | ||
| 2 | ON | ON | |||
| B | 3 | ||||
| 4 | |||||
| Input | Output | Gear position | ||||
|
|
|
|
 |
||
| A | 1 | ON | ON | |||
| 2 | ON | ON | ON | ON | ||
| B | 3 | |||||
| 4 | ON | ON | ||||
