Hegxing supplies various of Rotary Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.
Our Rotary Switches have advantages of economy, durability, easy mounting.
Hegxing supplies various of Rotary Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.
Our Rotary Switches have advantages of economy, durability, easy mounting.
Rating: | 400A 60VDC |
Contact resistance: | ≤ 50 mΩ |
Insulation resistance: | ≥ 100 MΩ |
Dielectric intensity: | ≥ 1,500 VAC / 5 S |
Life: | 10,000 cycles |
Angle of gear: | 30º / 90º |
Circuit diagram: | |
Position of initial gear (α): |
|

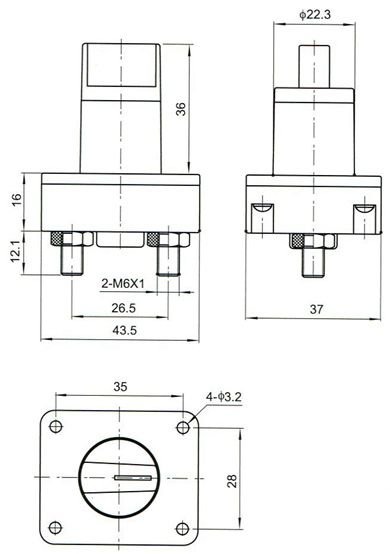

Dimensions of pole: | |
Terminal diagrams: | |
Bolt diagrams: |
Input | Output | Gear position | ||
A | 1 | ON | ||
2 | ON | |||
B | 3 | |||
4 |
Input | Output | Gear position | ||
A | 1 | ON | ON | |
2 | ON | |||
B | 3 | |||
4 | ON |
Input | Output | Gear position | |||
A | 1 | ON | |||
2 | ON | ON | |||
B | 3 | ON | ON | ON | |
4 | ON | ON | ON |
Input | Output | Gear position | |||
A | 1 | ON | |||
2 | ON | ||||
B | 3 | ON |
Input | Output | Gear position | |||
A | 1 | ON | ON | ||
2 | ON | ON | |||
B | 3 | ||||
4 |
Input | Output | Gear position | ||||
A | 1 | ON | ON | |||
2 | ON | ON | ON | ON | ||
B | 3 | |||||
4 | ON | ON |
