Hegxing supplies various of Rocker Switch, which is wildly apply to home appliance, machine, equipment, vehicle, etc.
Our Rocker Switches have advantages of economy, durability, easy mounting.
Description
Specifications
| Rating: | 15A / 20A 125VAC T125 16(8)A 125 / 250VAC T125 |
| Contact resistance: | ≤ 50 mΩ |
| Insulation resistance: | ≥ 100 MΩ |
| Dielectric intensity: | ≥ 1500 VAC / 5S |
| Life: | ≥ 10,000 cycles |
Diagrams
| Series No. | Circuit diagrams | Terminal diagrams |
| KCD4-B0-201 |  |
 |
| KCD4-B0-201/N |  |
|
| KCD4-B0-201 (FW) |  |
|
| KCD4-B0-202 |  |
|
| KCD4-B0-203 |  |
|
| KCD4-B0-202/N | |

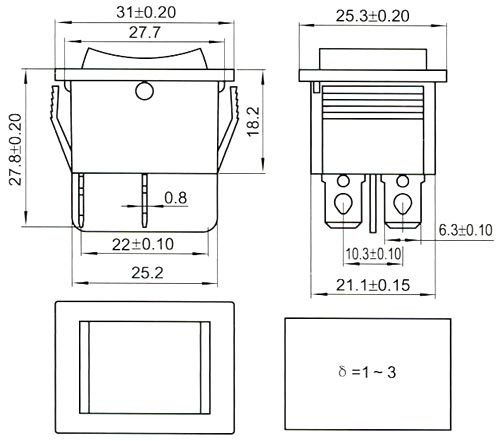

Drawings
