Pressure Welding Bar Connector

Home/Electronic Connector/2.5mm Pitch/Pressure Welding Bar Connector (XA) 2.5mm Pitch

Pressure Welding Bar Connector (XA) 2.5mm Pitch

  • Economical replacement for JST XA Connector, similar specification & quality but low price.
  • Secure locking device prevents accidental disconnection.
  • Header wafer is made of solder crack preventive material, glass-filled PA66 nylon.
  • Header pins are round and reflow-treated, which provides low insertion force.
  • Shrouded headers on radial-tape are also available.
  • Headers with polarizing bosses are also available.

Specifications

ItemPressure Welding Bar Connector
SeriesWire-to-Board Connector
ModelXA
Poles2 ~ 20 P
Rated voltage250 V AC/DC
Rated current3.0 A
Applicable wireAWG #28 ~ #20
Applicable PC board thickness1.2 ~ 1.6 mm
Contact resistance≤ 20 mΩ
Insulation resistance≥ 1000 MΩ
Withstand voltage1000 V AC/min
Temperature range-25 ℃ ~ 85 ℃

Materials

Housing Nylon (PA66) UL94V-2(0)
Terminal Tin plated phosphor bronze
Wafer Nylon (PA66) UL94V-2(0)
Retainer Nylon (PA66) UL94V-2(0)

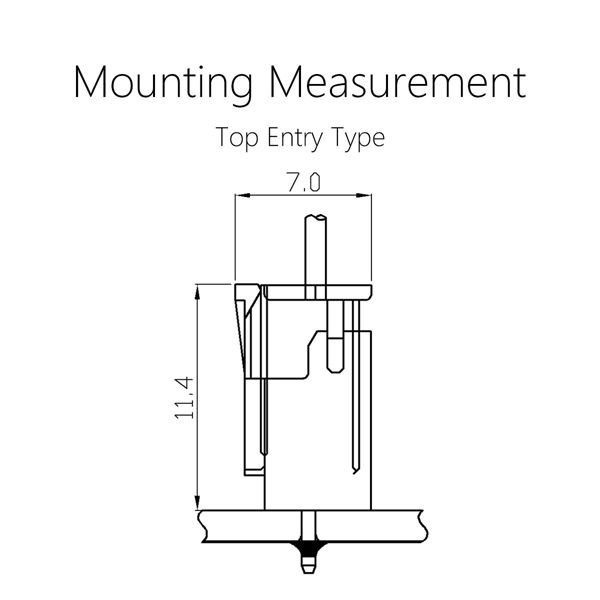

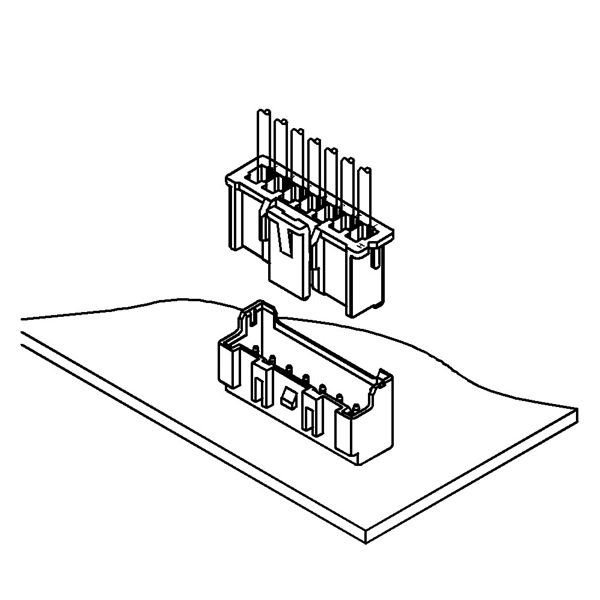

Drawings

XA
