Pressure Welding Bar Connector

Home/Electronic Connector/2.5mm Pitch/Pressure Welding Bar Connector (5264 & 5267) 2.5mm Pitch

Pressure Welding Bar Connector (5264 & 5267) 2.5mm Pitch

  • Economical replacement for Molex 5264&5267 Connector, similar specification & quality but low price.

Specifications

ItemPressure Welding Bar Connector
SeriesWire-to-Board Connector
Model5264 & 5267
Poles2 ~ 16 P
Rated voltage250 V AC/DC
Rated current3.0 A
Applicable wireAWG #28 ~ #22
Applicable PC board thickness1.2 ~ 1.6 mm
Contact resistance≤ 20 mΩ
Insulation resistance≥ 1000 MΩ
Withstand voltage1000 V AC/min
Temperature range-25 ℃ ~ 85 ℃

Materials

Housing Nylon (PA66) UL94V-2(0)
Terminal Tin plated phosphor bronze
Wafer Nylon (PA66) UL94V-2(0)
Retainer Nylon (PA66) UL94V-2(0)

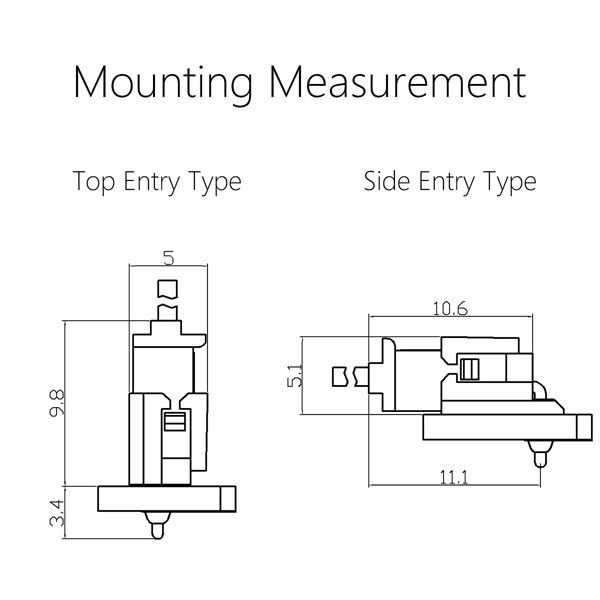

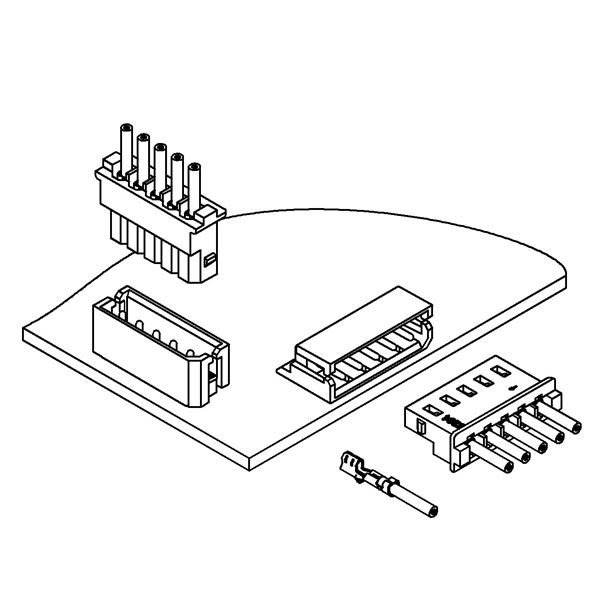

Drawings

5264 & 5267
