Specifications

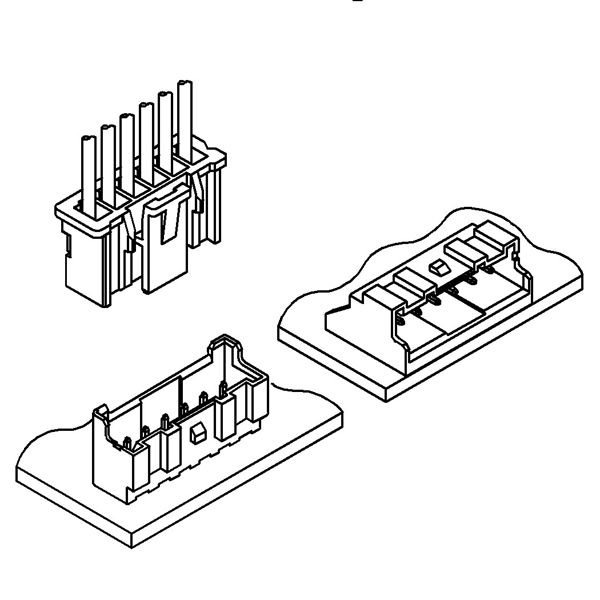

| Item | Pressure Welding Bar Connector |
| Series | Wire-to-Board Connector |
| Model | PA |
| Poles | 2 ~ 16 P |
| Rated voltage | 250 V AC/DC |
| Rated current | 3.0 A |
| Applicable wire | AWG #28 ~ #22 |
| Applicable PC board thickness | 1.2 ~ 1.6 mm |
| Contact resistance | ≤ 20 mΩ |
| Insulation resistance | ≥ 1000 MΩ |
| Withstand voltage | 1000 V AC/min |
| Temperature range | -25 ℃ ~ 85 ℃ |
Materials
| Housing | Nylon (PA66) UL94V-2(0) |
| Terminal | Tin plated phosphor bronze |
| Wafer | Nylon (PA66) UL94V-2(0) |
| Retainer | Nylon (PA66) UL94V-2(0) |
