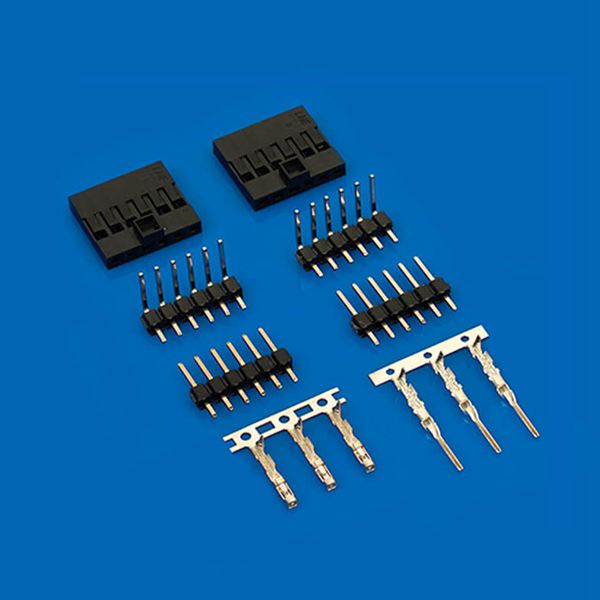

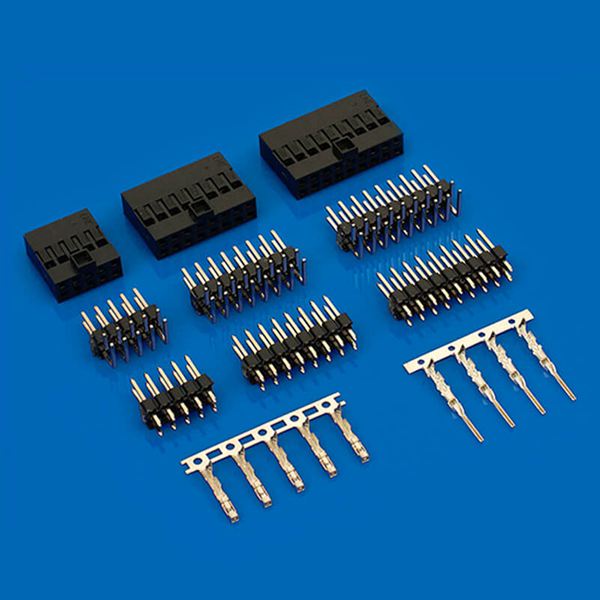

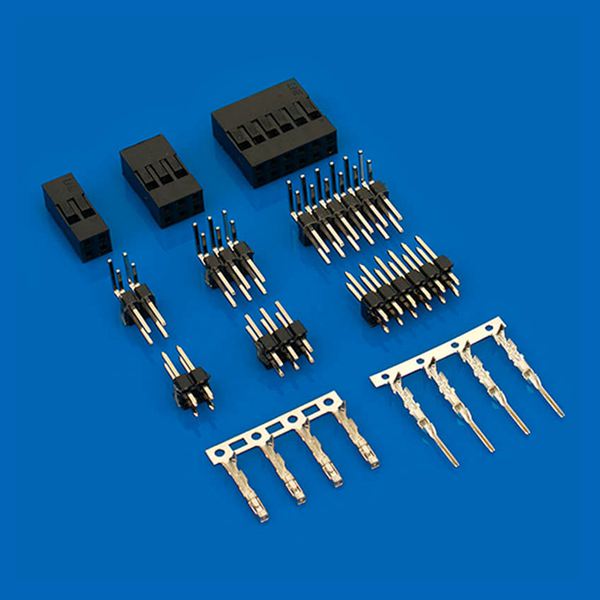

Pressure Welding Bar Connector (DuPont 2.54 / RE & RF) 2.54mm Pitch

  • Economical replacement for DuPont 2.54 / JST RE & RF Connector, similar specification & quality but low price.
  • Well suited for completing the internal connections of office automation equipment, such as personal computers, office computers, and their peripheral devices.
  • Double-leaf spring contact withstands the stresses caused by repeated mating and unmating..

Specifications

ItemPressure Welding Bar Connector
SeriesWire-to-Board Connector
ModelDuPont 2.54 / RE & RF
Poles1 ~ 40 / 2 x 2 ~ 40 x 2 P P
Rated voltage250 V AC/DC
Rated current3.0 A
Applicable wireAWG #26 ~ #22
Applicable PC board thickness1.2 ~ 1.6 mm
Contact resistance≤ 20 mΩ
Insulation resistance≥ 1000 MΩ
Withstand voltage1000 V AC/min
Temperature range-25 ℃ ~ 85 ℃

Materials

Housing Nylon (PA66) UL94V-2(0)
Terminal Tin plated phosphor bronze
Wafer Nylon (PA66) UL94V-2(0)
Retainer Nylon (PA66) UL94V-2(0)

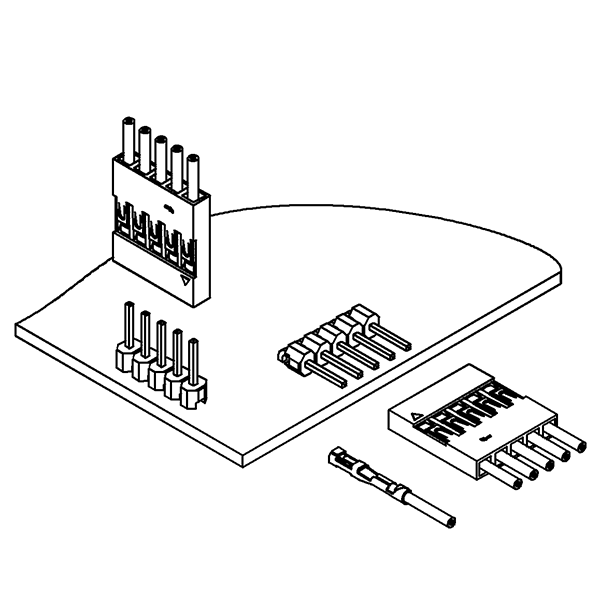

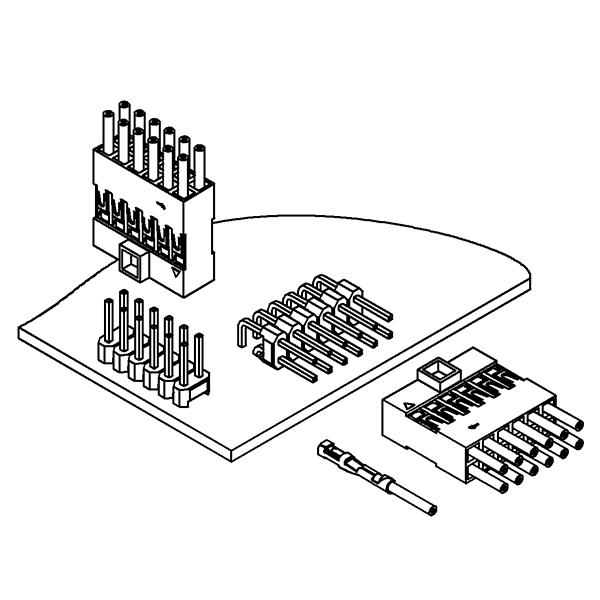

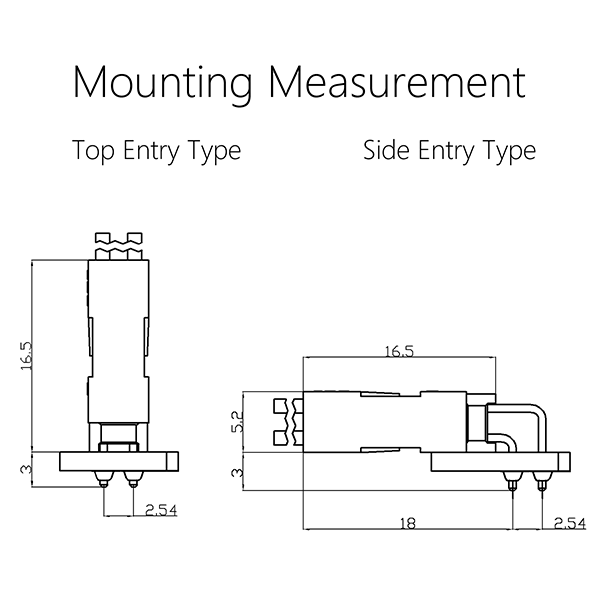

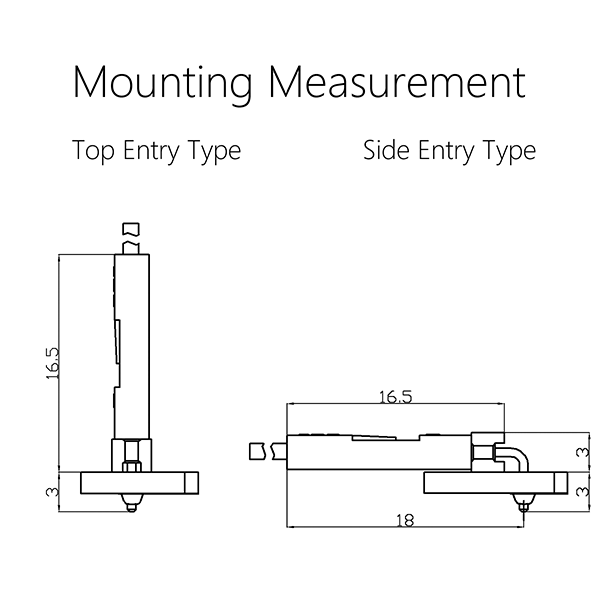

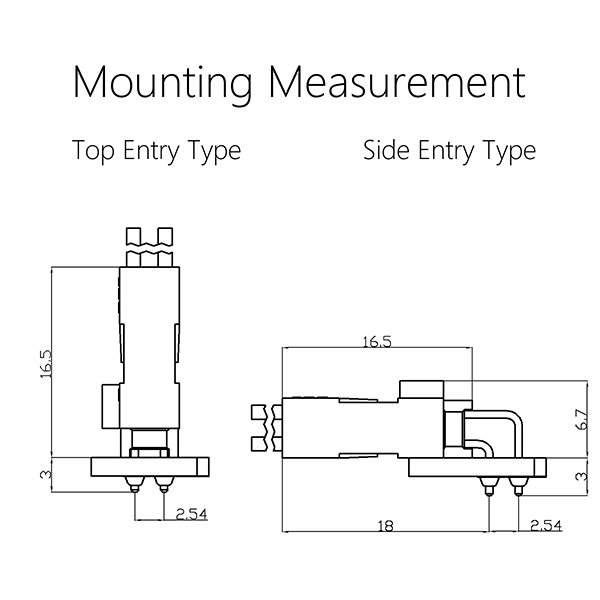

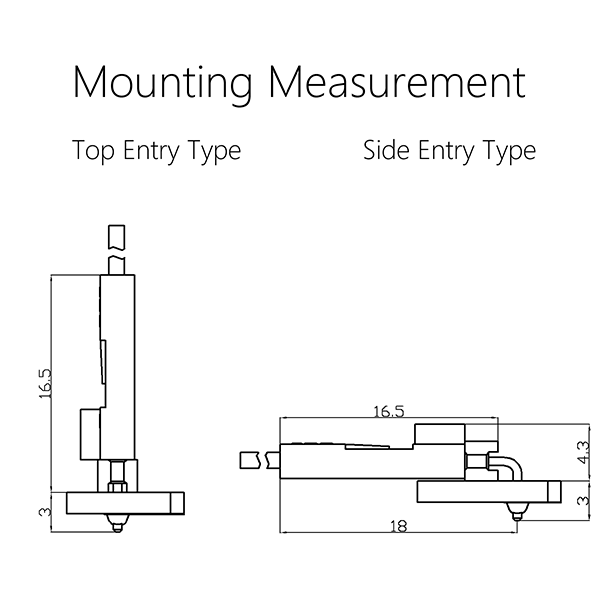

Drawings

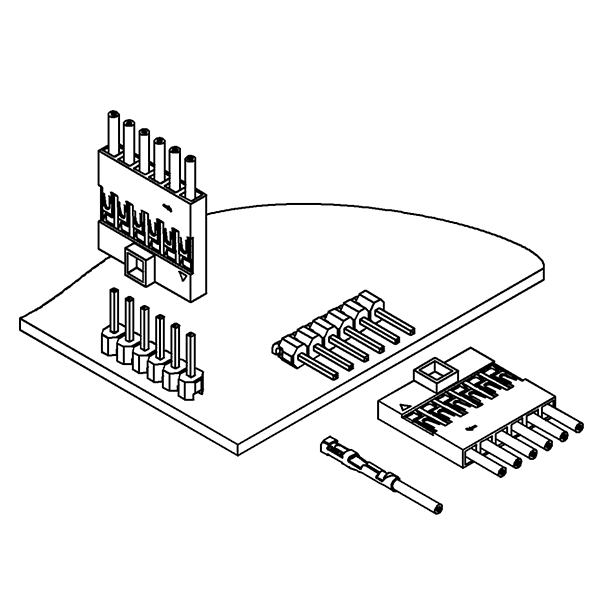

DuPont 2.54
