Power Switch KCD-A04-01

Hegxing supplies various of Power Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.

Our Power Switches have advantages of economy, durability, easy mounting.

Category: Tag:

Description

Specifications

Rating: 10A 250VAC / 5A 120VAC
Contact resistance: ≤ 50 mΩ
Insulation resistance: ≥ 100 MΩ
Dielectric intensity: ≥ 1,500 VAC / 1 min
Life: 10,000 cycles
Circuit diagram:

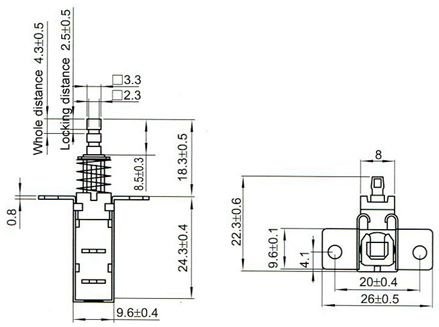

Drawings
