Hegxing supplies various of Plastic Push Button Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.
Our Plastic Push Button Switches have advantages of economy, durability, easy mounting.
Description
Specifications
| Rating: | 6A 125/250VAC T85 |
| Contact resistance: | ≤ 50 mΩ |
| Insulation resistance: | ≥ 100 MΩ |
| Dielectric intensity: | ≥ 1500 VAC / 5S |
| Life: | ≥ 10,000 cycles |
| Operating type: | Latch or Momentary |
| Button type: |   |
| Circuit diagram: |  |
| Terminal diagrams: |
|

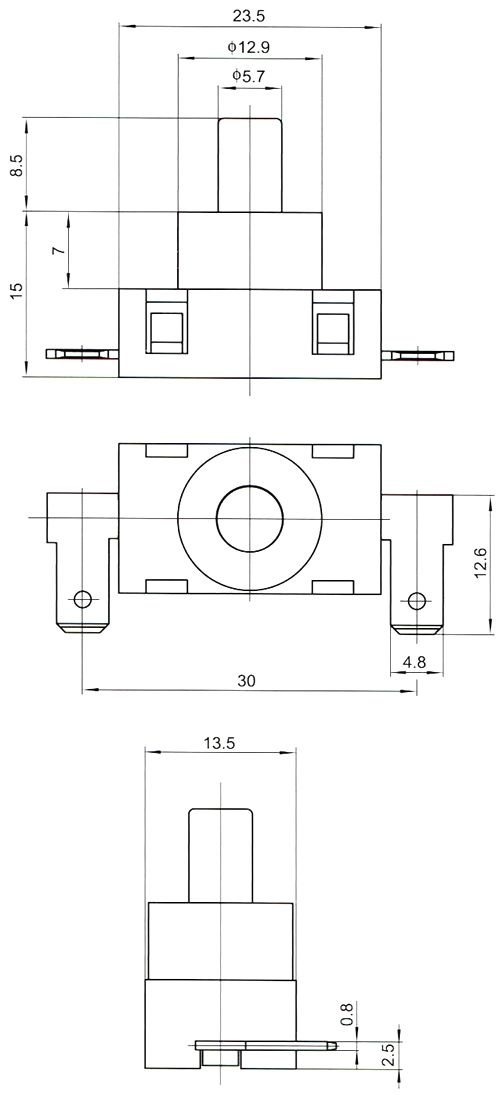

Drawings
