Hegxing supplies various of Over Load Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.
Our Over Load Switches have advantages of economy, durability, easy mounting.
Description
Specifications
| Rating: | 10A / 15A / 20A / 25A / 30A / 35A 250VAC |
| Contact resistance: | ≤ 50 mΩ |
| Insulation resistance: | ≥ 100 MΩ |
| Dielectric intensity: | ≥ 1500 VAC / 5S |
| Life: | ≥ 10,000 cycles |
| Trip time: | 40 s (2 Ie) |
| Circuit diagram: |  |
| Terminal diagrams: |  |
Trip Characteristics
| Current | Trip Time |
| 100% Ie | No trip |
| 150% Ie | Within 1 hour |
| 200% Ie | Within 40 s |
| 300% Ie | Within 8 s |
| 500% Ie | Within 3 s |
Ambient Temperature: 25 ℃

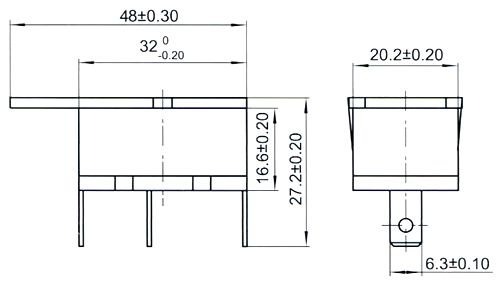

Drawings
