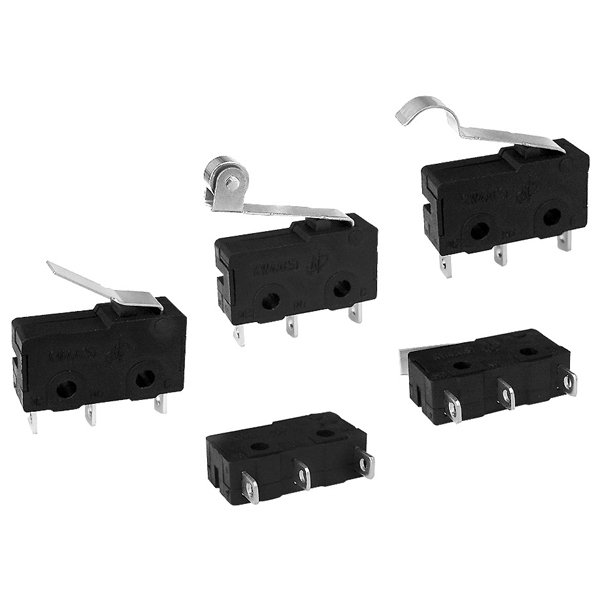

Hegxing supplies various of Micro Switch, which is wildly apply to home appliance, machinery, equipment, automobile, etc.
Our Micro Switches have advantages of economy, durability, easy mounting.
Description
Specifications
| Rating: | 5A 125/250VAC |
| Contact resistance: | ≤ 50 mΩ |
| Insulation resistance: | ≥ 100 MΩ |
| Dielectric intensity: | ≥ 1500 VAC / 5S |
| Life: | ≥ 10,000 cycles |

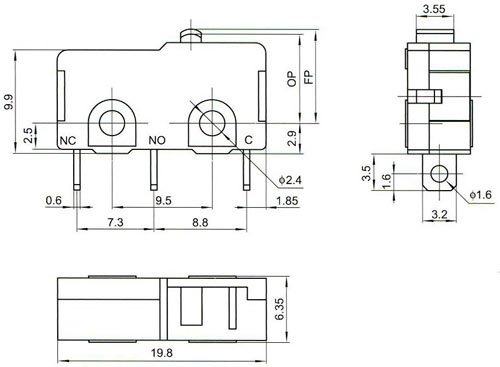

Drawings
Operating Diagrams
| Code | Title | Descriptions |
| PT | Pretravel | The displacements of actuator from free position to operating position |
| OT | Overtravel | The displacements of actuator from operating position to total travel position |
| MD | Movement differential travel | The displacements of actuator from operating position to total travel position |
| RT | Movement differential travel | The displacements of actuator from release position to free position |
| OF | Release travel | The force of displacements of actuator from release position to free position |
| TF | Total travel force | The smallest force of displacements of actuator on total travel position |
| RF | Release force | The force must be smallest when the actuator moved back release position from obverse operating position |
| TTP | Total travel position | The position where the actuator be stopped |
| OP | Operation position | The position where the actuator moved obverse on quick-moving parts |
| RP | Release position | The position where the actuator moved reversely on quick-moving parts |
| FP | Free position | The position where the actuator lead displacements when its force is not enough |

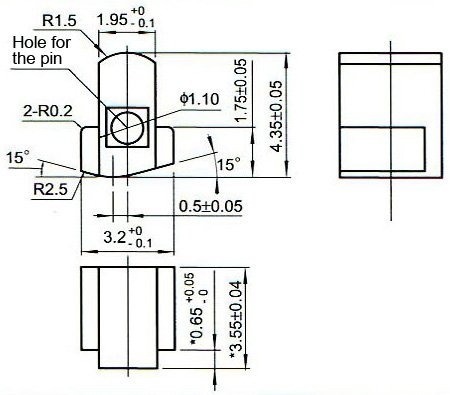

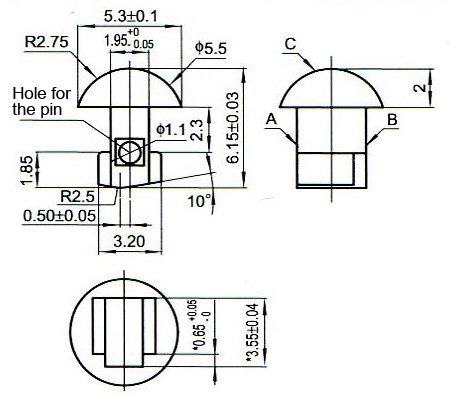

Plunger Diagrams
 |
 |
Circuit Diagrams
| Convert type SPDT |
 |
| NC type SPST-NC |
 |
| NO type SPST-NO |
 |
Terminal Diagrams
| N type 0.6 x 3.2 |
 |
| P type 0.6 x 1.2 |
 |
| L type 0.6 x 3.2 |
 |
Lever Diagrams
| 01 | OP: 12.0 ± 0.8 |  |
| 02 | OP: 12.1 ± 1.0 |  |
| 03 | OP: 12.4 ± 1.5 |  |
| 04 | OP: 14.5 ± 1.0 |  |
| 05 | OP: 17.8 ± 1.5 |  |
| 06 | OP: 12.5 ± 1.0 |  |
| 07 | OP: 13.0 ± 2.0 |  |
| 08 | OP: 12.65 ± 1.0 |  |
| 09 | OP: 11.6 ± 0.5 |  |
| 10 | OP: 14.0 ± 2.0 |  |
| 11 | OP: 11.7 ± 0.5 |  |
| 12 | OP: 1.35 ± 1.2 |  |
| 13 | OP: 12.2 ± 1.0 |  |
| 14 | OP: 12.2 ± 1.2 |  |
| 15 | OP: 18.5 ± 1.5 |  |
| 16 | OP: 19.0 ± 2.5 |  |
| 17 | OP: 12.5 ± 1.5 |  |
| 18 | OP: 14.8 ± 0.5 |  |
| 19 | DP: |  |
| 20 | OP: 19.5 ± 2.0 |  |
| 21 | OP: 12.2 ± 1.5 |  |
| 22 | OP: 13.0 ± 1.5 |  |
| 23 | OP: |  |
| 24 | OP: 17.2 ± 1.0 |  |
| 25 | OP: 14.5 ± 1.0 |  |
| 26 | OP: 14.0 ± 1.5 |  |
| 27 | OP: 12.0 ± 1.0 |  |
| 28 | OP: 12.5 ± 1.5 |  |
| 29 | OP: 16.0 ± 1.2 |  |
| 30 | OP: 13.2 ± 2.0 |  |
| 31 | OP: 17.0 ± 1.2 |  |
| 32 | OP: 12.5 ± 1.5 |  |
| 33 | OP: 12.0 ± 2.0 |  |
