Deutsch DT Automotive Connector DT0612SA-CE06 (12 Way, Plug, Crimp Termination)
• IP68
• Wire-to-Wire Connection System
• Operating Temperature Range of -55 to +125
• 12-way male connector
• Black plastic housing
• Thin wall
• Perfect for tough environments
• Voltage rating 250 V
• Centerline (Pitch) 5.46mm
• Primary locking feature integrated in the housing
Product Details
DT Plugs
From Deutsch, this DT Series plug is designed for cable to cable connections, and when mated is sealed to a high degree of environmental protection. Safe, versatile and reliable, DT plug connectors are ideal for automotive applications.

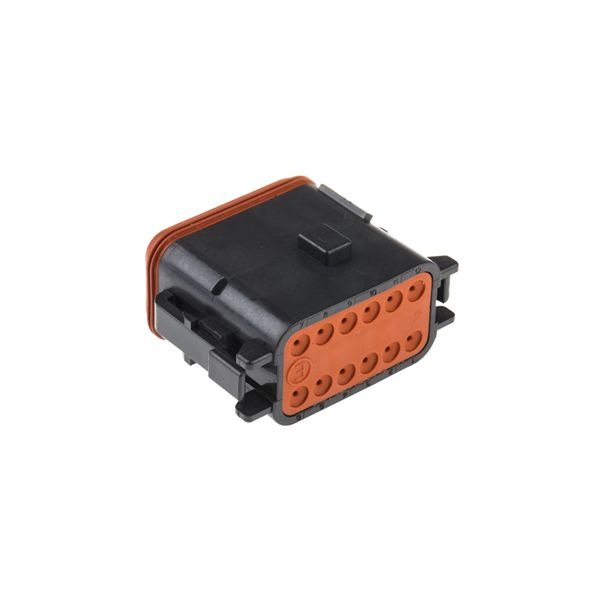

The Deutsch DT0612SA-CE06 is a 12-way automotive connector in a black plastic housing. This high-performance, tough connector is ideal for automotive applications in harsh environments.
This DT0612SA-CE06 male connector has a thin wall with 1.35 to 3.05mm wire insulation diameter.
Note
Crimp Contacts and Secondary Locks are available separately.
Specifications
| Item | Plug housing |
| Series | DT |
| Model | DT0612SA-CE06 |
| Poles | 12 P |
| Gender | Male |
| Mounting type | Cable mount |
| Termination method | Crimp |
Materials
| Housing | PA |
| Terminal | Tin plated phosphor bronze |
