• IP68
• Wire-to-Wire Connection System
• Operating Temperature Range of -55 to +125
• 4-way female connector
• Black plastic housing
• Thin wall
• Perfect for tough environments

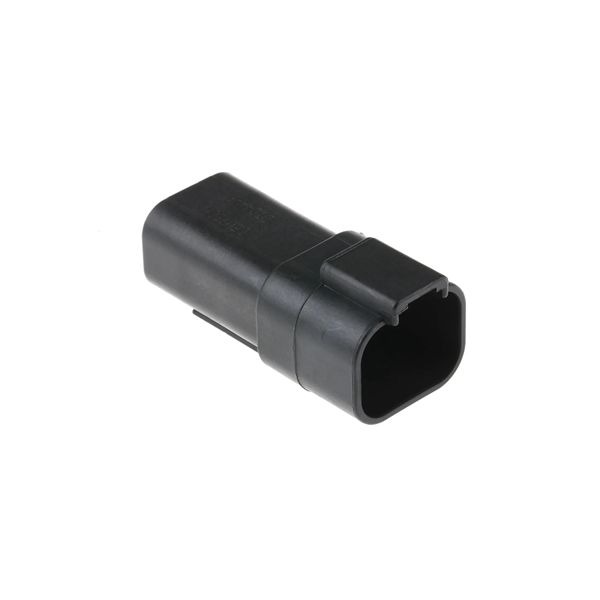

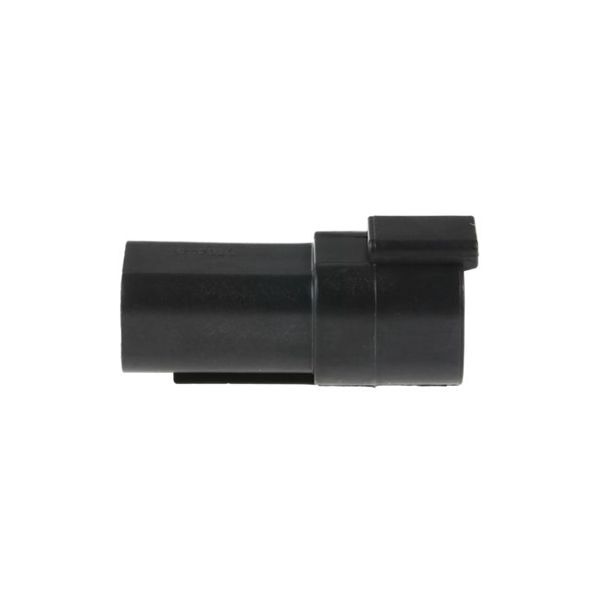

From Deutsch, this DT Series receptacle is designed for cable to cable connections, and when mated is sealed to a high degree of environmental protection. Safe, versatile and reliable, DT receptacle connectors are ideal for automotive applications.
| Item | Receptacle housing |
| Series | DT |
| Model | DT044P-CE02 |
| Poles | 4 P |
| Gender | Female |
| Mounting type | Cable mount |
| Termination method | Crimp |
| Housing | PA |
| Terminal | Tin plated phosphor bronze |
Hegxing focuses on producing various of Electronic Connector, Wiring Harness & Electronic Switch since 2011, which are widely apply to household appliances, equipments, automobiles, etc. The products are approved by UL, RoHS and ISO9001 certificate.
Hegxing always devote to provide competitive price, guaranteed quality & thoughtful service to every customer. Welcome to inquire!
