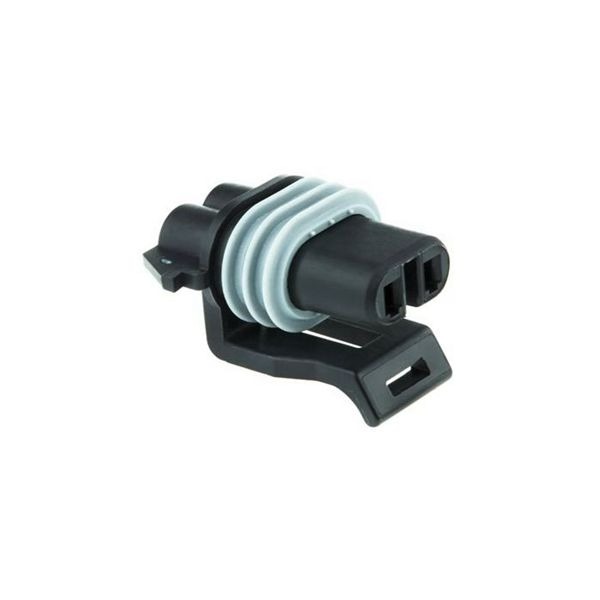

Delphi Metri-Pack 150 Automotive Connector 12052641 (2 Pin, Female, Crimp Termination)

Metri-pack 150 series automotive connectors can meet or exceed the the requirements of most marine, appliance and industrial control applications.

Description

Metri-Pack 150 sealed male automotive connectors with triple rib silcone rubber seals for environemntal protection. These Metri-Pack 150 sealed male automotive connectors have a low energy, low voltage capability, a maximum continuous current of 14 A, offer a high resistance to chemicals and abrasion and withstand a wide temperature range of -40 to 125°C. Typical applications for these Metri-Pack 150 automotive connectors include critical low energy electronic underhood vehicle applications where environmental protection is essential. For mating halves and accessories please see table.

Specifications

ItemReceptacle housing
SeriesMetri-Pack 150
Model12052641
Poles2 P
GenderFemale
Rated current14 A
Mounting typeCable mount
Termination methodCrimp
Width23.4 mm
Height26 mm
Depth18.6 mm

Materials

Housing PA
Terminal Tin plated phosphor bronze
